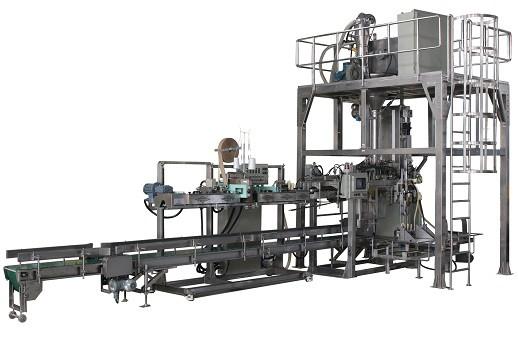

Bottom filling type fine powder degassing automatic packaging
machine
1. Automatic bag feeding machine
Bag supply capacity: 300 bags / hour
It is pneumatic driven, and its bag library can store 100-200 empty
bags. When the bags are about to be used up, an alarm will be
given, and if all the bags are used up, the packaging machine will
automatically stop working.
2. Automatic bagging machine
Bagging capacity: 200-350bags / h
main feature:
① Vacuum suction bag, manipulator bagging
② Alarm for lack of bags in the bag library
③ Alarm of insufficient compressed air pressure
④ Bagging detection and bag blowing function
⑤ The main parts are stainless steel
3. Vacuum bag taker
The vacuum suction cup separates and sucks the empty bags on the
bag feeding machine, and the manipulator grips the empty bags and
moves them to the middle of the bag feeding machine, then releases
the gripper and returns to continue to take the bags.
4. Shaping and conveying device
After the shaping device centers the empty bag, the bag feeding
device places the empty bag at a predetermined position and waits
for bagging..
5. Bagging manipulator
After holding the empty bag on both sides, place the automatic bag
holder.
6. Automatic bag clamp
The pneumatic gripper clamps the empty bag sent by the robot and
checks whether it is clamped properly (if it is not clamped, the
empty bag will be blown off automatically). Open the bag sucker to
open the bag mouth, and at the same time check whether the bag
mouth on the sucker is opened (if it is abnormal, blow out the
empty bag).After normal operation, the discharge port shall be
opened and extended into the bag port, and the electronic scale
shall be informed to discharge, and the materials shall enter the
packaging bag through the intermediate hopper.
7. Traverse trolley (push bag machine)
After the materials enter the packaging bag, the materials in the
bag are fully overlapped, and then fed into the jaw shaping machine
along the linear guide rail by the transverse trolley.
8. Bag mouth shaping machine
Together with the bag-delivery trolley, send the bag into the
sealing unit to ensure that the bag mouth is not deformed. The
height is mechanically adjustable, and the feeding speed is
steplessly adjusted by frequency conversion.
Drive mode: AC motor, 380V ± 10%, 50HZ
Motor power: 0.37KW
9. Automatic packaging control system
Adopt imported controller, imported motor frequency conversion
speed controller, imported photoelectricity and position detection
device to form the main body of the control system, and realize the
coordinated control of the whole packaging machine. The system has
positive and negative pressure detection, and is equipped with
automatic / manual conversion methods. The entire operating system
is simple to use, has complete functions, and is properly
overhauled and maintained.
Technical parameters
| Serial number | Model
| DCS-5U |
| 1 | Maximum packaging capacity | 600 bags/hour (depending on material) |
| 2 | fill style | 1 hair/1 bag filling |
| 3 | Packaging materials | Grain |
| 4 | Filling weight | 10-20Kg/bag |
| 5 | Packaging Bag Material | Plastic bag (film thickness 0.18-0.25 mm) |
| 6 | Packing Bag Size | long(mm) | 580～640 |
| wide(mm) | 300～420 |
| Bottom width(mm) | 75 |
| 7 | Sealing style | Paper Bag: Sewing/Hot Melt Adhesive Tape/Wrinkled Paper Plastic bags: thermosetting |
| 8 | Air consumption | 750 NL／min |
| 9 | Total power | 3 Kw |
| 10 | weight | 1,300 Kg |
| 11 | Shape size (length * width * height) | 6,450×2,230×2,160 mm |
