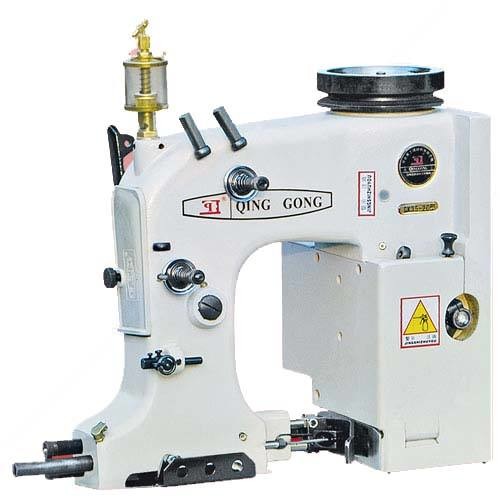

Horizontal Table Type Continuous Plastic Bag Band Sealing Machine
bag sewing machine plastic bag closing machine
Sewing machine is a device for sewing the mouth of plastic woven
bags, paper bags, paper-plastic composite bags, aluminum-coated
paper bags and other bags. It mainly completes the stitching and
seaming of bags or knitting.
Technical Parameters
| Model | GK35-2C | GK35-6A | GK35-8 |
| Max. Speed | 1900 Rpm | 2000 Rpm | 1900 Rpm |
| Thickness of material | 8 mm | 8 mm | 8 mm |
| Range of Stitch width | 6.5-11 mm | 6.5-11 mm | 6.5-11 mm |
| Thread type | 20S/5, 20S/3, Synthetic fibre thread |
| Needle | Model 80800 ×250# |
| Thread chain Cutter | Manual | Electro-pneumatic | Electro-pneumatic |
| Weight | 27 Kg | 28 Kg | 31Kg |
| Size | 350×215×440 mm | 350×240×440 mm | 510X510X335 mm |
| Start-stop Type | pedal switch | light-controlled switch | pedal switch |
| Re-mark | Single-Needle, Two-Thread | Double-Needle, Four-Thread |
About us
Wuxi Jianlong Packaging Co., Ltd. is a R & D and production
enterprise specializing in solid material packaging solution. Our
product portfolio includes bagging scales and feeders, open mouth
bagging machines, valve bag fillers, jumbo bag filling machine,
automatic packing palletizing plant, vacuum packaging equipment,
robotic and conventional palletizers, stretch wrappers,
conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a
group of engineers with strong technical strength and rich
practical experience, which can help customers with one-stop
service from solution design to product delivery, freeing workers
from the heavy or unfriendly working environment, improving
production efficiency, and will also create considerable economic
returns for customers.
No matter what solutions we offer you, such as material
characteristic analysis, packaging bag analysis or feeding,
conveying, filling, packaging, palletizing, automatic design and
turnkey engineering, we are looking forward to be your reliable
long-term partner.
